How Xprite Works

Xprite brings the Aseprite editor into the browser: there's nothing to install, no account to create, and no server that stores your artwork. This article explains, from the engineering side, how we read and write .aseprite in the browser, how we draw crisp pixels with Canvas, where your work is stored, how the editor opens without a connection, and how a desktop interface built for a mouse adapts to fingers, pens and phone screens.

The big picture

All of the editor's work happens in the browser. Heavy jobs run in Web Workers, storage uses the browser's own IndexedDB and OPFS, and the network is only used to load the page, send anonymous analytics and submit feedback.

Reading and writing .aseprite in the browser

The file format

.aseprite is a little-endian binary format: a 128-byte header followed by frames, each made of several chunks. The header's magic number is 0xA5E0, and each frame's is 0xF1FA. Our decoder handles these chunks:

The older 0x0004 and 0x000B palette chunks are also read, and the deprecated mask (0x2016) and path (0x2017) chunks are recognized.

Check first, then decode

A file opened in the browser could come from anywhere, so decoding happens in two passes. The first pass scans the whole file and checks that every chunk's length, offset and count stay inside the file. Only then does real decoding begin. Damaged files, or files over the limits, are caught during the scan instead of failing halfway through. The current limits are:

Decoding in a Worker

Decompressing dozens of frames takes time, and doing it on the main thread would freeze the interface. When you open a file, we hand it to a dedicated decoding Worker, and the decoded pixel buffers are transferred back to the main thread as Transferable objects, without copying. If the browser doesn't support Workers or the Worker fails, decoding falls back to the main thread.

Pixel data is zlib-compressed. We prefer the browser's native DecompressionStream("deflate") and cap its output at the size declared in the chunk header to guard against decompression bombs. When that isn't supported, we use fflate. The other decompression path allocates an output buffer of exactly the declared size and verifies the Adler-32 checksum.

Only decompress the pixels you need

When a file opens, RGB cels are validated but not fully decompressed. The original compressed bytes stay in memory, and each frame is decompressed when it's needed. Large projects don't have to be decompressed into memory all at once.

Writing back what you didn't change

When saving to .aseprite, the encoder leaves untouched content as it was:

• Unchanged cels are written back from the compressed bytes kept since opening, without recompressing.
• Unknown chunks are written back as they are, so files made with newer versions of Aseprite don't lose data when saved in Xprite.
• Recompressed cels only use the compressed version when it's smaller than the raw data.
• Compression uses the browser's native CompressionStream. When it isn't supported, the file is saved uncompressed. It's larger, but Aseprite still opens it.

Rendering the canvas with Canvas 2D only

Xprite doesn't use WebGL. Pixel art canvases are usually small; the hard part is keeping every pixel sharp. At any zoom level and screen density, a pixel has to show up as a square with crisp edges, not something the browser smooths into a blur.

From layers to the screen

While you draw, the editor records the rectangle each stroke changes, and rendering only writes that area into the image canvas instead of re-sending the whole image every time. The finished view (pixels, checkerboard, grid) is cached on a base canvas. Its cache key includes the pixel version, the view position, display settings and so on. Moving the cursor doesn't change the key, so the base canvas is reused and only the brush cursor preview is redrawn.

Integer and fractional scales

The last step draws the view to the screen. If the view maps to the screen at an exact integer scale, image smoothing is turned off and the browser's drawImage does the work:

if (Number.isInteger(scaleX) && Number.isInteger(scaleY) /* and no offset */) {
  presentation.imageSmoothingEnabled = false;
  presentation.drawImage(sourceCanvas, 0, 0, sourceWidth, sourceHeight,
                         0, 0, canvas.width, canvas.height);
  return;
}
presentation.putImageData(renderer.render(context.getImageData(...)), 0, 0);

At fractional scales, such as a screen density of 1.5 or 110% browser zoom, browsers sample drawImage differently. Columns of pixels come out uneven, or the whole image shifts by half a pixel. In that case we do nearest-neighbor sampling ourselves: for the target size we precompute which source pixel each column and row maps to, and store them in two Int32Array lookup tables. Sampling copies each pixel as a single Uint32, and runs of identical rows are copied whole with copyWithin.

The interface follows the same idea: every control is drawn with 2 samples per logical pixel. Resizing the browser window only changes the size of the workspace; buttons and menus stay the same size.

Importing and exporting images

The browser encodes and decodes PNG, JPEG, WebP and other images:

• Decoding prefers createImageBitmap, with an <img> element as the fallback.
• Encoding prefers OffscreenCanvas.convertToBlob, with <canvas>'s toBlob as the fallback.
• When a browser doesn't support a format, toBlob doesn't throw an error; it quietly returns a PNG. So after encoding we check the result's actual type, and before exporting we encode a 1×1 test image to find out which formats the browser can export.

Where your work is stored

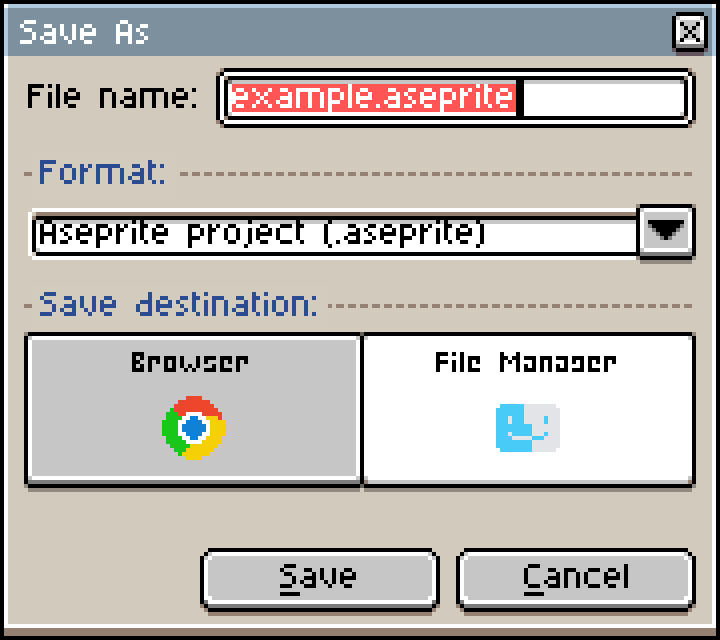

There are two places to save a project, chosen under Save destination in Save As...:

Projects in the browser exist only in this browser on this device and don't sync. Clearing site data deletes them too. See the user guide.

File Manager: writing straight back to the original file

In browsers that support the File System Access API (desktop Chrome, Edge and others), Open and Save bring up the system file dialogs. What we get is a file handle, not a copy of the file:

• The file handle is stored in IndexedDB, so the next Save writes back to the same file without asking where.
• Before writing, we request read-write permission, then write with createWritable().
• Browsers require the file dialog to come directly from a user's click, so we call showSaveFilePicker() right after the click, with no other async work in between.
• When the page is embedded in another site's iframe (a game portal, for example), the browser doesn't allow file dialogs. Xprite then downloads the file, just as it does in browsers without support.

Browser: an IndexedDB catalog plus OPFS data

For projects stored in the browser, the catalog (name, size, modified time, current version) always lives in IndexedDB. Project data is stored in OPFS (the origin private file system, a private area of disk the browser gives each site) whenever possible. OPFS is used only when the browser supports Workers, navigator.storage.getDirectory(), Web Locks and writable file handles. The storage type is chosen when a project is created and never changes, so a change in browser support can't make old projects disappear.

OPFS reads and writes run in a dedicated Worker, which uses a synchronous access handle (createSyncAccessHandle) to write, truncate and flush. Every save follows these steps:

A few rules keep the data from being corrupted:

• Written data is append-only. Each key can be written once, and files that fail halfway are deleted.
• Only the final catalog transaction switches the current version, and only if no other tab changed the current version first (compare-and-swap).
• When Xprite is open in several tabs, Web Locks make writes mutually exclusive.
• Splitting along .aseprite chunk boundaries keeps unchanged frames and layers in the same segments. Editing one frame only writes the segments that changed.

Automatic recovery

Automatic recovery uses the same storage path as saving to the browser. While you edit, Xprite saves recovery data every 2 minutes by default and keeps it for 7 days. You can change the interval and the number of days in Edit → Preferences → Files. If the browser closes unexpectedly, choose Recover Files... on Home to get your work back.

Share links: the sprite lives after the

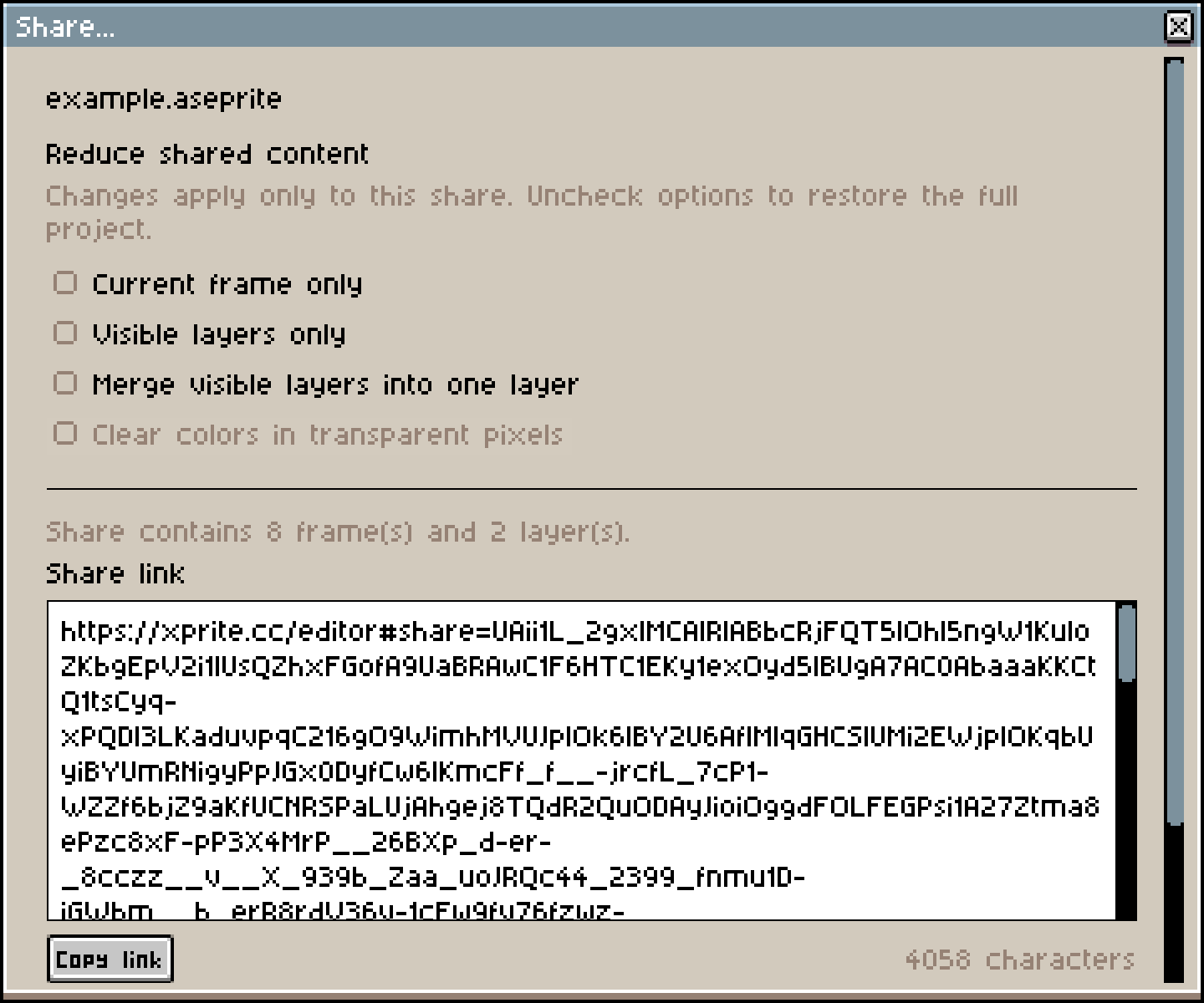

File → Share... doesn't upload anything. The sprite is compressed and written into the part of the link after #share= (the URL fragment). Browsers don't send anything after # to the server, so sharing never touches a server.

• Packing, compression and decoding all run in a Worker. Zstd runs as WebAssembly: data is first compressed at level 19, and results under 1 MiB are compressed again at a higher level. If WebAssembly fails to load, only DEFLATE is used, and the link still opens.
• A QR code's alphanumeric mode takes only 5.5 bits per character, which is more compact than byte mode, so QR codes use a Base43 encoding made only of characters from that mode.
• When a link opens, the editor reads the data after #share=, removes it from the address bar right away with history.replaceState, and then hands it to a Worker to decode.
• Links over 1,800 characters come with a warning that some chat apps may cut them off. Links over 8,192 characters aren't created.

The link contains the complete editable project. Anyone with the full link can open it, links don't expire, and they can't be revoked. If you send a link or QR code through a chat app, that app receives the artwork data as well.

Offline use: one complete version at a time

After you add Xprite to your desktop or Home Screen, a Service Worker caches the editor so it opens without a connection. (The cache needs one online visit to the editor first; see the user guide for the steps.) The caching strategy is built around keeping versions consistent:

• Each build generates a resource manifest for that version, with an SRI hash for every file. On install, cache.addAll caches the whole manifest at once. If any file fails to download or its hash doesn't match, the version doesn't take effect, so old and new files are never mixed.
• Once everything is cached, a "ready" marker is written, and offline launches only use versions with that marker.
• A new version takes over as soon as it's installed, but pages that are already open keep running the old code. Old assets with hashed file names are kept so those pages can still load them.
• Only build output is cached. Analytics, the feedback endpoint and the website pages bypass the cache.
• An old version's cache is deleted only after every editor window has closed.

In browsers that support it, we also request persistent storage (navigator.storage.persist()) to make it less likely that the browser clears your work when space runs low.

Touch screens and pens

A mouse has one pointer, but a touch screen can have a pen and several fingers on it at once. The input layer handles them with these rules:

The drag threshold also depends on the pointer type: a finger has to move more than 8 CSS pixels to count as a drag, while a mouse or pen only needs 1 pixel.

Finer strokes

To save work, browsers merge several pointermove events within one frame into a single event. When you draw with a pen, we take all the merged samples from getCoalescedEvents(), each with its pressure value. Browsers also offer predicted samples, which we don't use: a predicted point may not match the real stroke, and it must never end up in the undo history.

/** Real samples only: predicted input must never reach document history. */
const coalesced = event.getCoalescedEvents?.() ?? [];
const actual = coalesced.filter(
  (point) => point.pointerId === event.pointerId && point.pointerType === "pen",
);

Apple Pencil on iPad

In Safari on iPad, Apple Pencil touches trigger system behavior by default, such as text selection and Scribble. React's touch listeners are passive and can't prevent default behavior, so we register a non-passive native touchstart listener directly on the canvas and draggable controls, and call preventDefault() only when touchType is stylus. Text fields and other editable areas aren't affected, so you can still write in them with Scribble.

Layout: from a desktop window to a phone in portrait

Xprite's interface recreates Aseprite 1.3. Dialog sizes and control positions come from measurements of Aseprite 1.3.18, and tests keep them in line. The theme graphics follow Aseprite's pixel style, and the Chinese interface uses the Fusion Pixel font.

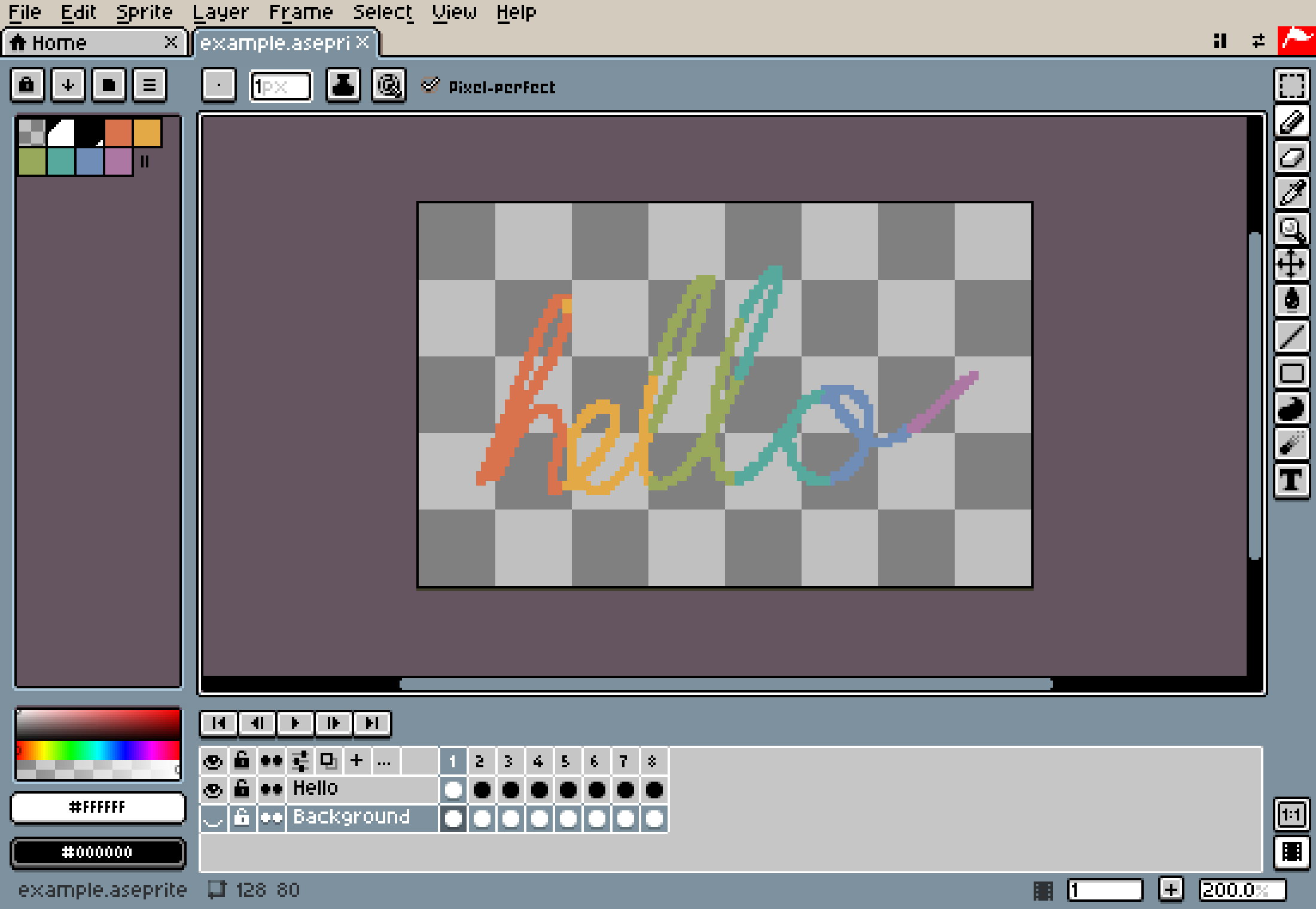

On a wide screen you get the familiar desktop layout: the menu bar at the top, the palette on the left, tools on the right and the timeline at the bottom.

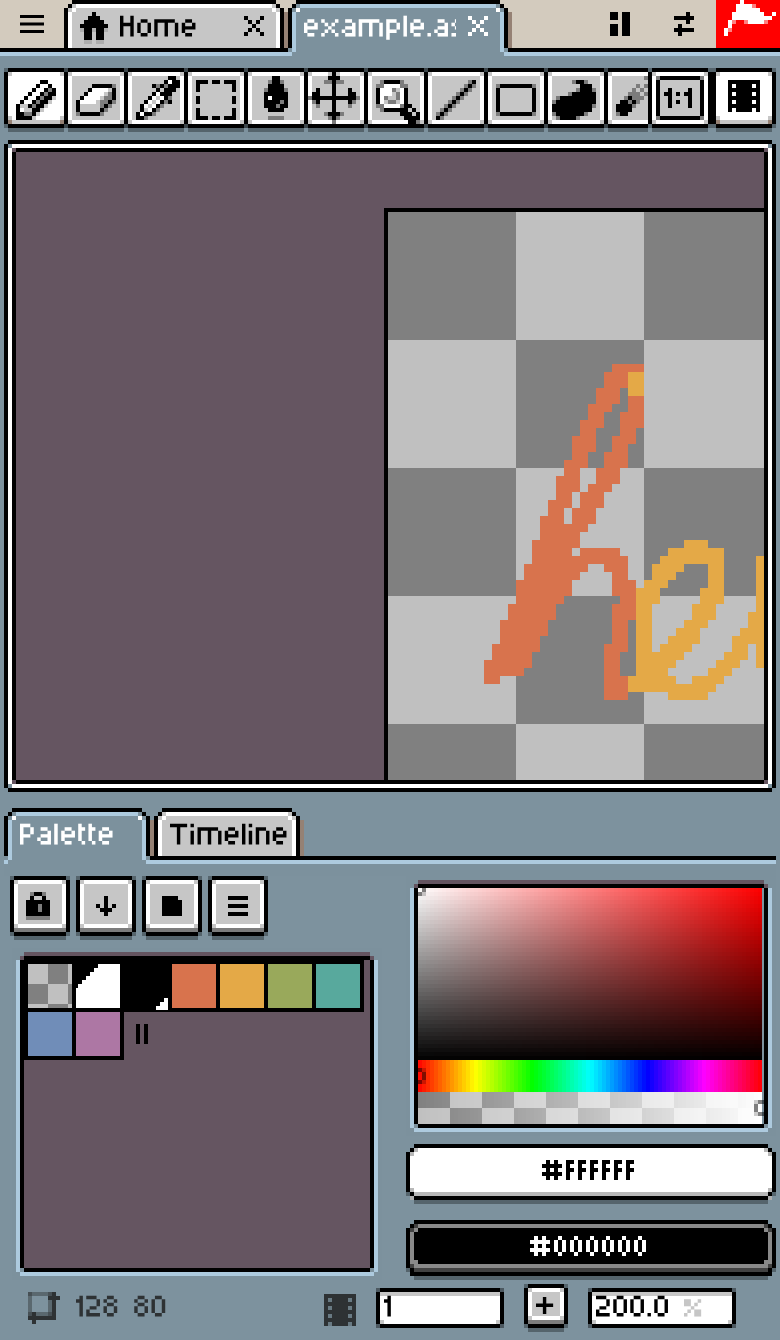

That layout doesn't fit a phone held upright. When Workspace layout is set to Auto (the default), we choose a layout based on the available space. You can also fix it to Wide layout or Compact layout; see the user guide. The rules are:

In the compact layout, the menu bar folds into the ☰ button in the top-left corner, and the interface stays clear of safe areas such as the notch and rounded corners:

Layout and interaction mode are decided separately. An iPad in landscape uses the wide layout and touch interaction at the same time. Narrowing a desktop browser window switches to the compact layout but keeps mouse interaction.

Data Xprite sends

Editing, saving and sharing don't use the network. Only two kinds of data are sent:

Usage analytics go to PostHog Cloud (US):

• The visitor ID is stored in the browser's localStorage.
• The raw IP address is discarded after the approximate location is added.
• Session recording and automatic click capture are both turned off.
• If you turn on Do Not Track in your browser and reopen Xprite, no more usage data is sent.

See the privacy notice for the full details.

Open source

You can find the source code for everything described here on GitHub. The editor code is licensed under GPL-2.0-only.
